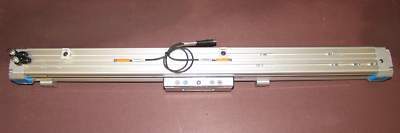

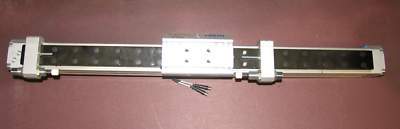

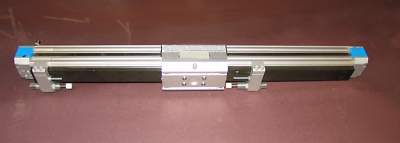

Festo pnuematic linear actuator dgpl-32-500-ppv-a-kf b
Up for sale is a used Festo Pnuematic Linear Actuator DGPL-32-500-PPV-A-KF B. Unit is in excellent condition.
32mm 1.259" Bore by 500mm 19.685" Stroke
PPV=Adjustable Air Cushion Both Ends at a length of 18mm
A=Position sensing piston by Permanent magnet fixed to piston, via externally mounted proximity sensor
KF=Slide with recirculating ball bearings and steel guide rail
Ports are 1/8, Max PSI 8 bar or 120 psi

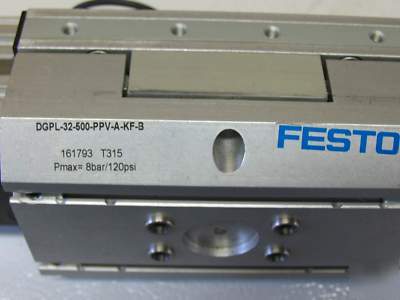

Part number DGPL-32-500-PPVA-KF B
