14" ogp ql-14C optical comparator, di-metric dro & pro

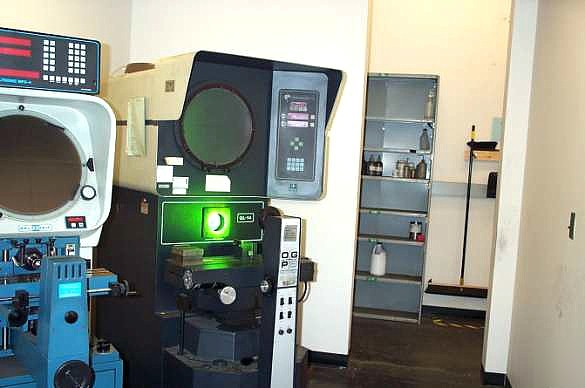

14" OGP QL-14C OPTICAL COMPARATOR, DI-METRIC DRO & PRO
14" Screen OGP QL-14C OPTICAL COMPARATOR, DI-METRIC DRO & PROJECTRON IV
14" OPTICAL GAGING PRODUCTS, INC. (O.G.P.)
OGP "DI-METRIC PLUS" DIGITAL READOUT DISPLAY
w/PROGRAMABLE GEOMETRIC FUNCTIONS & "PROJECTRON"
MODEL: QL-14C S/N: QL-142103 NEW: 1990
SCREEN DIAMETER ............................. 14"
TO 1' OF ARC) .............................. 360 DEG.
TABLE SIZE .................................. 6- 1/2" X 27"
TABLE TRAVEL, HORIZONTAL .................... 12"
TABLE TRAVEL, VERTICAL ...................... 6"
FOCUS TRAVEL ................................ 2"
HELIX ROTATION (TO 5 DEG. ARC) .............. +/- 15 DEG.
THROAT CLEARANCE ............................ 18- 3/8"
APPROX. MACHINE WEIGHT ...................... 1,525 LBS.
w/PROGRAMABLE GEOMETRIC FUNCTIONS & "PROJECTRON IV"
HEAVY DUTY TABLE, WITH INFINITELY VARIABLE SPEED
POWER DRIVE ON BOTH HORIZONTAL & VERTICAL AXES.
DIGITAL ELECTRONIC ROTARY SCREEN FOR SCREEN ANGLE
HIGH INTENSITY MERCURY ARC LIGHTING
THIS IS THE TOP OF THE LINE! PARTS & SERVICE ARE AVAILABLE
FROM THE MANUFACTURER (***)544-0131.
