Hacker-meisei rcm-3655 robot coverslipping machine accs

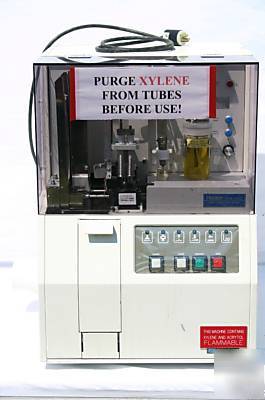

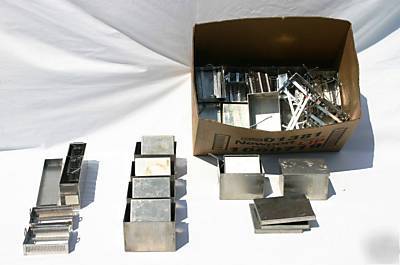

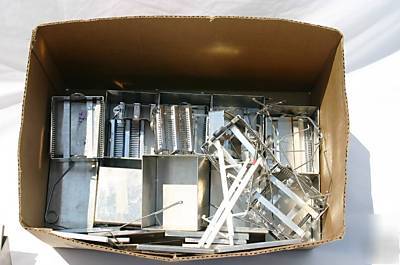

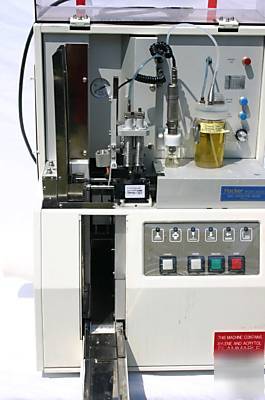

HACKER-MEISEI RCM-3655 Robot Coverslipping Machine w/ Accessories
This unit was removed in working condition from the Lab of a closed Biological Company. We are sure it was in working condition when we removed it. Unit Powers up and conveyor moves.

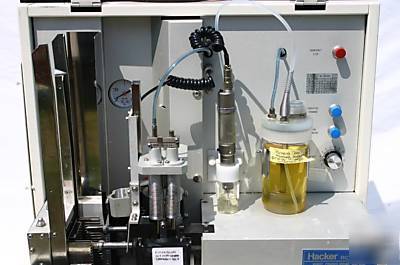

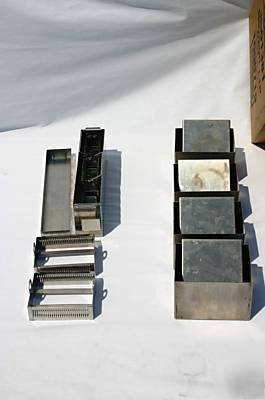

Hacker/TBS Robotic Coverslipper model RCM 3655. Processes 150 slides per hour. Stainless steel 20-slide baskets carry slides into the Robot Coverslipper. Position of slide is detected by electronic eye. Magic Fingers pick up the slide and place it horizontally on the storage fork. Coverglass is lifted from the coverglass holder Mountant medium is dispensed on the slide. The coverglass is applied by rolling it onto the slide under pressure. The mounting medium spreads under the coverglass as it is laid down, removing air bubbles. The completed slide is moved mechanically to the storage rack by the storage fork. The cycle is repeated for each slide. This whole process takes only 22.5 seconds per slide. Effective rate for the standard RCM is 160 slides per hour. Slide dimensions: 76 x 26mm; thickness 0.9-0.17mm. Width 22 or 24mm Length 24,30,40,50 and 55mm. Power requirment 115V AC, 60Hz, 100VA. Bench weight 132lb.
