Analog devices rti-1225 analog input/output card

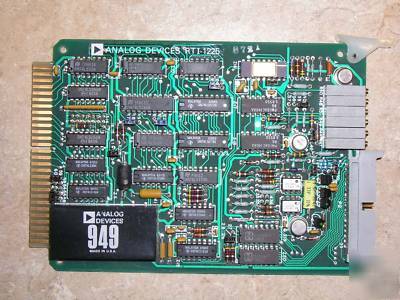

This is an Analog Devices RTI-1225 Analog Input/Output Card
* 16 single-ended/8 differential input channels
* 10-bit A/D and 8-bit D/A resolution
* single +5V power requirement
* memory mapped or I/O selectable
* compatible with all STD CPU cards
Analog Devices' RTI-1225 series products handle analog inputs and outputs for STD Bus microcomputer systems. These subsystems provide a cost effective solution to interfacing with the analog world by minimizing the hardware development time and providing low function cost. The RTI-1225 combines both analog input and output functions on a single card, thus reducing components count. This design provides data acquisition of analog signals from 8 differential or 16 single-ended, jumper-selectable voltage inputs and 2 independent voltage outputs.
I have 4 more of these boards available. Let me know if you are interested and I will list them.
