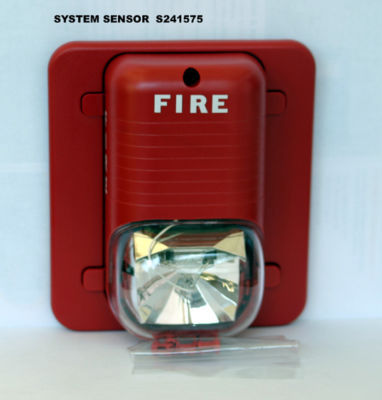

System sensor S241575 strobe fire alarm systems
System Sensor Spectra/Alert Series Strobes is a high quality remote audio/visible signaling appliance. The electronic horn is a solid state device rated at 101dB @ 10.0 fT 24.0V. The high intensity strobe utilizes a Xenon flash tune which generate a high intensity light, visible from all sides. The strobe is UL listed in compliance with UL 1971, Signaling Appliance for the Hearing Impaired (15/75 Cd and 30/75 Cd models are additionally listed in compliance with UL 1638).
This appliance is intended for use in Fire Alarm Systems and is to be installed in accordance with this installation manual,the recommendations of the local authorities having jurisdiction, and another NFPA Standards.
* Strobe Voltage Range 20.0 - 30.0
* Models with 1575 are listed at 15 Cd per UL 1971 but will provide 74 Cd on axis
