New nordson HM2300 series replacement board 2302 X10D

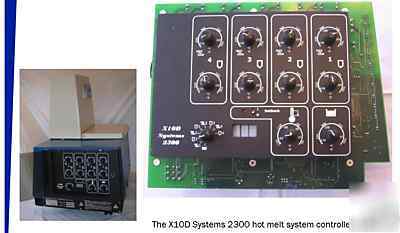

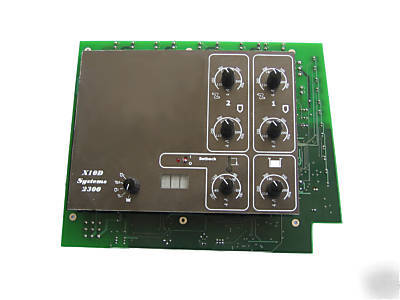

X10D SYSTEMS 2300 HOT MELT SYSTEM CONTROLLER
THIS REPLACES THE NORDSON 2302 BOARD 276881, 276882, 276883
The X10D Systems 2300 hot melt system controller is an updated, fully featured replacement for the OEM controller used in Nordson HM2302, HM2304, and HM2305 hot melt systems. The X10D Systems 2300 comes standard with digital temperature readout and temperature setback and can be installed in minutes in place of the existing controller (With no Modifications, Direct Replacement). All hardware is included, along with a 6 month warranty.
The X10D Systems 2300 uses the same connectors, in the same locations, as the OEM board. This allows for rapid, error free installation. All X10D Systems 2300 controls include digital temperature display and temperature setback - features that are extra-charge from the OEM.
Power: 208 - 240VAC, 1 or 3 phase
327-6886 has four hose and four gun channels (replaces Nordson 276884, 276885, 276886)
327-6889 has five hose and five gun channels (replaces Nordson 276887, 276888, 276889)
Control Accuracy: +/- 1 degree F (+/- .5 degree C)
Temperature Control Range: 200 to 400 degree F (93 to 205 degree C)
Sensor Type: 120 ohm nickel RTD
Do you need a different part or have a part that you need remanufactured?
Contact us today for pricing on rebuild services and new equipment.
WE CLEAN AND REMANUFACTURE EQUIPMENT FROM NORDSON, ITW, SLAUTTERBACK, MELTON AND OTHERS.
WE PROVIDE REMANUFACTURING OF MELTERS, MODULES, GUNS, NOZZLES, AND HOSES AND SUPPLY A FULL LINE OF REPLACEMENT AND AFTERMARKET PARTS
* We fully clean and chemically remove all glue and residue.
* We replace bad insulation.
* We replace faulty components.
* We replace the hose coverings.
* We clean and grease all fittings and threads.
* We clean all pin and socket connectors.
* We clean all glue off of Cordsets and Plugs.
* We test the equipment to make sure that the Heaters, Boards, Pumps, Motors, Modules and RTD's work properly.
* We have a very fast turn around time.
