LOT OMEGADYNE PX209 SOLID STATE PRESSURE TRANSDUCER/NEW

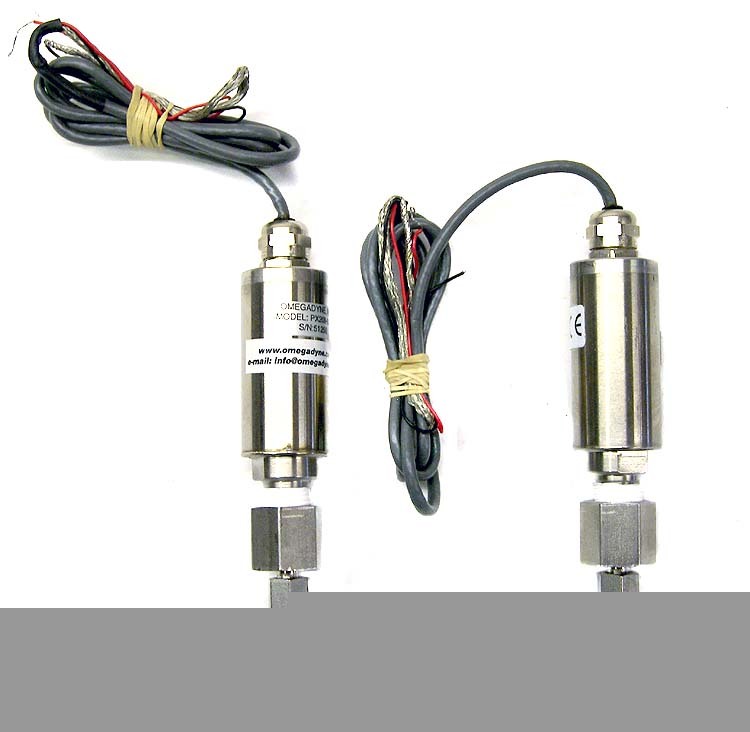

Lot Of 2 Omegadyne General Purpose Pressure Transducer / Solid State Pressure Transducer
OMEGA s PX209 Series general purpose pressure transducers are accurate, highly reliable pressure transducers suitable for the harshest industrial environments. The small size and lightweight of the PX209 Series pressure sensors are ideal for laboratory and scientifice applications. The unusually high performance of this solid state pressure transducer comes from the 4-active-arm-bridge sensor using a micro-machined diffused silicon diaphragm and proprietary thin film media and dielectric isolation barriers. A proprietary ASIC provides excellent temperature compensation from -20 to 80 C (-4 to 176 F), and very tight tolerances for zero balance and span. Packaged in an all stainless steel housing, PX209 pressure transducer has excellent performance and the wetted parts are impervious to many industrial liquids and gases.
Excitation: 24 Vdc @ 15 mA (7 to 35 Vdc for 5 V output, 12 to 35 for 10 V output )
Output: 0 to 5 Vdc or 0 to 10 Vdc 1.5%(3-wire)
Zero Balance: 0 Vdc 2% FSO
Excitation: 24 Vdc (7 to 35 Vdc) reverse polarity protected
Output: 4 to 20 mA 1% FSO (2-wire)
Zero Balance: 4 mA 2% FSO
Max. Loop Resistance: 50 x (supply voltage -10) Ohms
Accuracy: 0.25% BFSL (including linearity, hysteresis and repeatability)
Operating Temperature: -54 to 121 C (-65 to 250 F)
Compensated Temperature: -20 to 80 C (-4 to 176 F)
Thermal Effects: 0.04% FS/ C (0.02% FS / F)
Burst Pressure: 300% range max.
Response Time: 2 mS typical
Vibration Sensitivity: At 20 g peak sinusoidal vibration from 10 Hz to 2000 Hz (1.2" D.A.), the output shall not exceed 0.04% FS/g for 15 psi range to 0.005% FS/g for 100 psi and above
Natural Frequency: >35 kHz for 100 psi range
Gage Type: Diffused silicon strain gages
Wetted Parts: 316 SS, borosylicate glass, silicon nitride, epoxy
PX209: 1 m (36") shielded 4-conductor cable
PX219: DIN 40050 Plug Connector Supplied
