Manifold gauge set R134A R22+ hvac charging epa applied

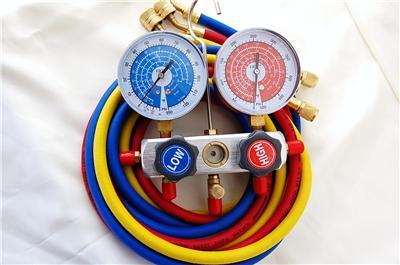

Manifold Gauge Set R134a R22+ HVAC Charging EPA Applied
Brand New Advanced Model Manifold Set
with 5-ft High Pressure hoses for Multi-Refrigerants: R22 R134a R404 R407 etc.
we have 4 models of manifold gauges, for comparison, view this file:
http://viot.us/showproduct.php?model=manifolds
1. R22, R134a, R404a, R407c Manifold:
* Large 3 1/8" diameter easy-to-read, dual gauges,
* mounted on anodized Aluminum alloy block body(light weight, stronger than brass)
* Large sight viewing glass
* Flutter free shock resistant gauges.
* Diaphragm valves with swivel seals for more positive seal and less wear
* Large easy-to-grab hand-knobs
* One full turn open or close valves
* Extra large port holes for faster recovery or charging, or less restriction
* Temperature in F for R22, R134a, R404, R407
* 2 1/4" SAE Male Flair anchors for hose rest.
* 1 1/4" SAE Male Flair Schroeder valve on the utility line(yellow) serve as an extra port for connection or anchor for hose rest.
* a heavy duty hook for hanging the gauges
2. 3 Color-Coded High Pressure Hoses with Auto-Shut-Off Fittings
Meet EPA, SAE, and UL standards for containment of refrigerant.
* 60 inch in length each
* 4000 PSI burst pressure
* 800 PSI working pressure
* 1/4" female SAE brass fitting to the gauge block
* 1/4" female SAE brass fitting with automatic shut-off valve to the system ports.
Retain refrigerant in the hose when they are removed from the system.
* 45 degree angle on the service port site for easier access
* Enviro-Safe auto-closing valve prevents the refrigerant from releasing to the environment.
* Teflon O-ring washer provide the best seal and the most durability)
