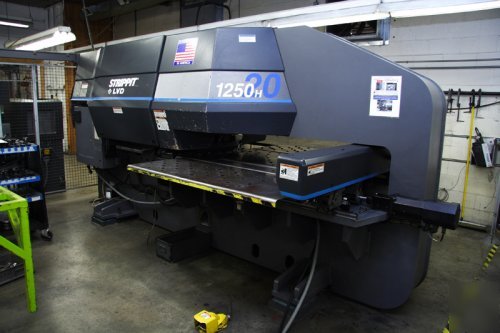

22 ton strippit FC1250H20 hydraulic turret punch
RATED TONNAGE.............................. 23 TONS
TURRET STATIONS............................ 2O THIN
TOOL CAPACITY.............................. 107 WITH MULTITOOL
INTERNAL STATION TO STATION TURRET TOOL
MAG. ROTATION SPEED RPM.................... .7 SEC.
ONE SET, EXTERNAL, MIN/SEC................. 15 SEC./1.5 MIN.
MAX. HOLE DIAMETER......................... 3.5"
NUMBER OF STATIONS......................... 3 AUTO INDEX
ROTATION SPEED............................. 45 RPM
SPM, ACCURACY ON 1" CENTERS................ 440 +/-.004"
STROKES PER MINUTE CONTOURS................ 1,000
MAX. PARTING SPEED, IPM, (PERIMETER PUNC).. 3,150
INDEXABLE FEED CLEARANCE................... .827"
MAX. MATERIAL THICKNESS.................... .250"
MAX. DIMENSIONS............................ 98.4" X 49.2"
MAX. WEIGHT................................ 205 LBS
THROAT DEPTH (IN).......................... 52.5"
TABLE TRAVEL DIMENSIONS.................... 51.213" X 51.213"
LINEAR TABLE SPEED MAX. IPM................ 3,150 3,883 DIAG.
CONTROL.................................... G.E. FANUC O-P
