2 pfa husky long-shaft/rod air cylinder switc

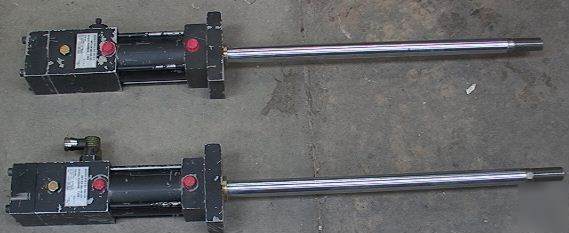

Two (2) PFA husky long-shaft/rod air or hydraulic cylinders with control section.
Listed as Series:PVS-2.5/1.0X2.5-2-MF1-AN-LS2-CM-125.
These are locking air cylinders. the #s mean 2.5" bore with 1" rod and 2.5" stroke. the cm125 means it was custom made cyl. design change #125. the other letters and numbers are referening the flange style and where the ports are located.
One unit includes the TURCK proximity sensor shown above and below.
It is hard to see but there is a red and a green status indicator LED light in the image below.
Looks like this sensor has normally open and NC contacts.
Overall length is about 33.5 inches.
The shaft is about 21", of which about 2 inches is threaded.
The shaft is about 1" diameter and the thread is about 7/8.
It looks like the cylinder barrel is 4" long.
Additional like items may be available listed separately or on request.
Might be just what you need for your air cylinder application application.
Condition looks good used. One has a proximity switch and the other does not. Some scuffing of paint but they may never have actually been used.
