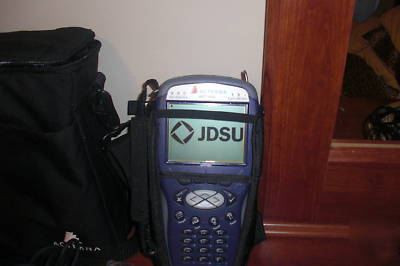

Acterna jsdu hst-3000 dsl tester
The Acterna HST-3000 is a modular handheld tester that can be built to order, to test the copper, test the DSL service and improve the process. Technicians use the HST-3000 copper base instrumentand the copper service interface module (SIM) to qualify, maintain, and troubleshoot the local loop. This same base instrument, with a second SIM that tests both ADSL and the copper, enables one technician to perform tests thatwere previously conducted by two technicians using different equipment.
For those technicians who only need to test ADSL, the instrument can be configured for ADSL functionality only. Any HST-3000 module equipped to perform ADSL service tests can also verify ISP and Internet connectivity with the Acterna Advanced IP Suite software option. With the HST-3000 minimize the time and reduce the capital expense and labor cost associated with ADSL and copper testing.
* A combined tester for Copper and DSL testing
* Lower repeat rates with automated close out tests, scripting/pass-fail tests, and back office integration
* Modular hardware and software architecture is flexible and easily upgraded
* Laptop/PC integration via RS-232, USB, or wireless for easy results transfer
* Intuitive, easy-to-use GUI, lightweight, rugged and water resistant
Instrument Interface Specifications
* Dual TIP/RING and Ground POTS/Copper: Color-coded, shrouded 2mm mini-banana jacks
* 10/100 BT Ethernet jack: 8-pin modular
* Serial port: DB9 female via cable (DCE)
* Bluetooth short-range wireless
* Ruggedness: Survives 3-ft drop to concrete on all sides
* Water-resistance: Splash proof: may be used in heavy rain
* Keypad: Typical 12-button keyboard
* Size (H x W x D): 9.5 x 4.5 x 2.75 in
* Operating temperature: 22 F to 122 F
* Storage temperature: 40 F to 150 F
* Battery life: 10 hrs. typical usage
* Charging time: 7 hours from full discharge to full charge
* Operating humidity: 10% to 80% relative humidity
* Storage humidity: 10% to 95% relative humidity
* Display: 1/4 VGA monochrome transflective, 3.8-in diagonal (readable in direct sunlight)

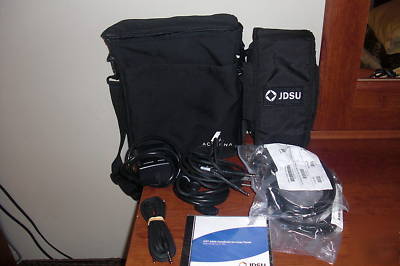

- Acterna HST-3000C REV. 6.00.15
- Option: Trans Impairment Analysis
- JDSU HST-3000 SIM VDSL-CX/WB2 Module
- Acterna HST-3000 SIM ADSLR Module
- JDSU P/N: HST-000-463-03 Cable
- JDSU P/N: HST-000-463-04 Cable
- JDSU P/N: HST-000-464-02 Cable
- JDSU P/N: HST-000-084-02 Cable
- JDSU P/N: HST-000-711-01 Cable
- JDSU P/N: 21103806 RS-232 Cable
